Anglian Multipoint Gearbox – Lift Lever or Split Spindle

Description

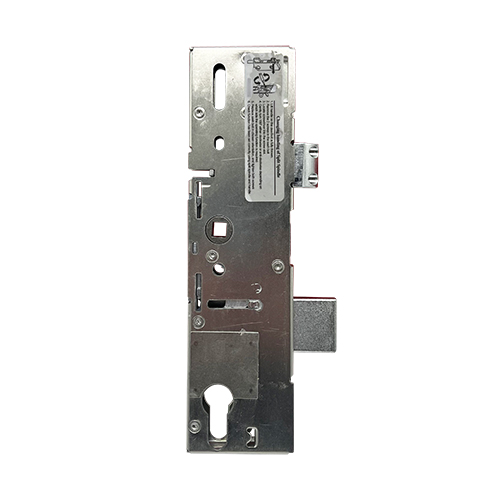

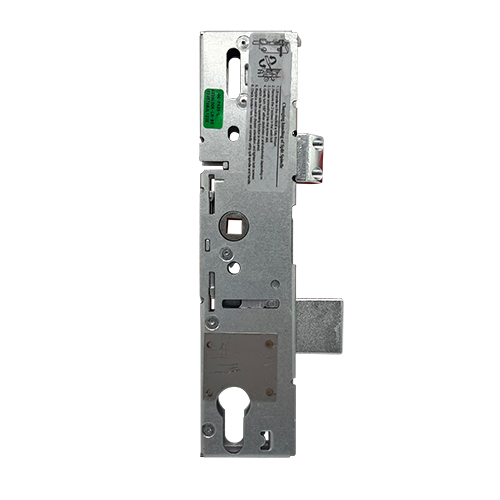

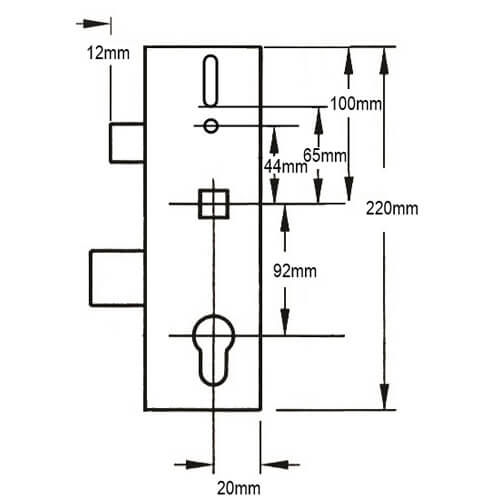

Anglian multipoint door lock gearboxes are very distinctive, with a square design and no corner cut-outs. The overall length of the gearbox is 221mm and the width is the backset plus 18mm.

n

Available in 35mm, or 45mm backsets.n

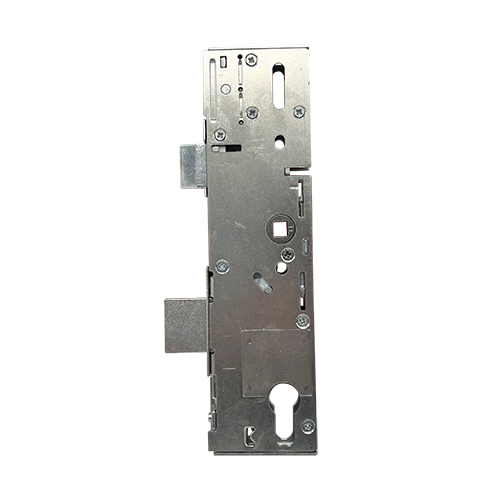

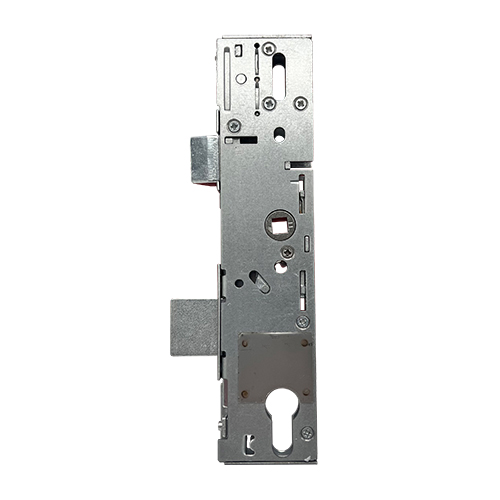

Anglian multipoint door lock gearboxes feature a 24mm high latch (with 2 distinctive screws in the latch), a 30mm high deadbolt, and 61mm between them. Gearboxes are held on to the faceplate with 4 screws, which is unusual for a multipoint door lock. The first screw hole to the second measures 37mm, the second to the third measures 85mm, and the third to the fourth screw measures 43mm.

n

When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.

nn

Operation: Lift lever or split spindle

n

Latch reversal: Undo the screws in the latch to remove. Reverse and reinsert then replace screws.

n

Nightlatch split spindle reversal: Remove latch to reveal a small screw. Use a small bladed screwdriver to turn the screw 180 degrees then return the latch to the correct position.

n

To lock the door

n

1. On closing the door, the latch is automatically engaged.

n

2. Lift the handle up to engage the additional locking points.

n

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

n

To unlock the door

n

1. Unlock the system by turning the key.

n

2. Push the handle downwards to disengage the locking points.

n

3. A further quarter turn of the key will retract the latch.
