Description

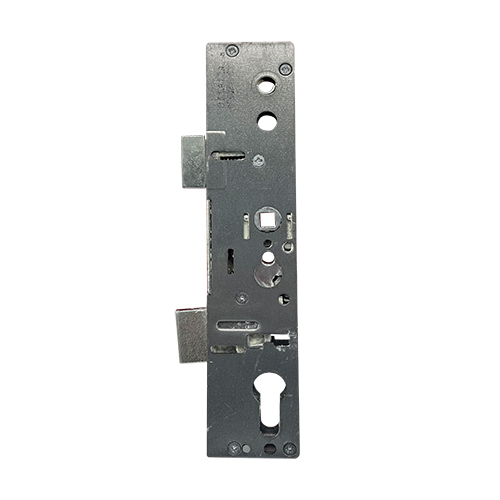

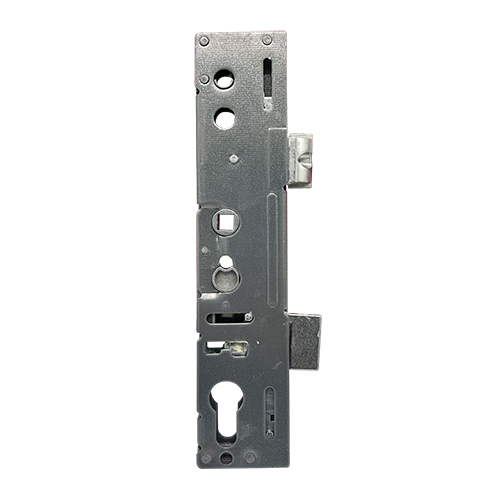

Surprise gearboxes are available in 35mm or 45mm backset with a single spindle mechanism.
n
Single spindles are sprung and can only be used as a lift lever function.
n
Surprise gearboxes measure 228mm high by backset +15mm. The latch measures 30mm high, as does the deadbolt. There is 65mm between the bottom of the latch and the top of the deadbolt.
n
Gearboxes are fitted to faceplates with 3 screw holes. The top to middle screw hole measures 109mm and the middle to bottom also measures 109mm.
n
Earlier versions of these gearboxes also had a small spindle hole at the top of the case, near to the latch. This was used to hold the latch back.
n
Operation: Lift Lever
n
Latch reversal: Undo the screw in the latch to remove. Reverse and reinsert then replace screw.
n
To lock the door
n
1. Lift the handle upwards to engage the locking points.
n
2. Lock the locking points and main deadbolt (if present) by turning the key.
n
To unlock the door
n
1. Unlock the system by turning the key.
n
2. Push the handle downwards to disengage the locking points and retract the latch.
